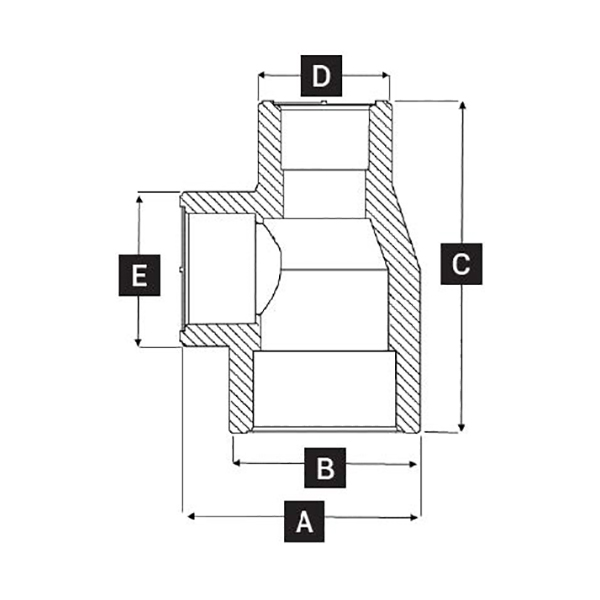

Size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	PCS/Box
20 x 25 x 20	46.0	28.6	62.0	28.6	34.0	75
25 x 20 x 20	48.1	34.4	63.0	29.3	29.3	75
25 x 20 x 25	48.0	34.0	62.5	34.0	29.3	75
25 x 25 x 20	48.1	34.3	61.9	29.3	34.0	75
32 x 20 x 20	57.0	43.5	73.0	30.2	30.0	45
32 x 20 x 25	57.0	42.6	73.0	34.4	29.3	45
32 x 20 x 32	53.0	43.0	76.5	43.0	28.4	50
32 x 25 x 20	52.0	41.7	72.0	29.4	34.1	60
32 x 25 x 32	55.0	43.2	75.0	43.2	34.6	48
40 x 20 x 40	67.5	53.0	75.5	53.0	29.2	36
40 x 25 x 32	66.0	53.2	77.0	42.6	34.0	36
40 x 25 x 40	65.5	52.7	75.0	52.7	34.6	36
40 x 32 x 25	67.0	53.2	77.0	34.2	42.0	36
40 x 32 x 40	67.5	53.0	76.0	53.0	42.5	30
50 x 20 x 50	77.2	67.0	99.6	67.0	30.5	15
50 x 25 x 50	81.5	66.5	100.0	66.5	36.1	15
50 x 32 x 50	80.0	66.4	99.6	66.5	44.2	15
50 x 40 x 50	82.5	67.1	100.5	67.1	55.1	12
63 x 20 x 63	91.0	84.0	120.0	84.0	31.6	8
63 x 25 x 63	90.0	84.0	120.0	84.0	37.3	8
63 x 32 x 63	95.0	84.0	120.0	84.0	46.2	8
63 x 40 x 63	94.0	84.0	120.0	84.0	57.5	8
63 x 50 x 63	100.0	84.0	120.0	84.0	69.9	8
75 x 20 x 75	104.5	100.5	135.5	100.5	29.0	5
75 x 25 x 75	108.5	100.5	135.5	100.5	36.2	5
75 x 32 x 75	111.0	100.5	135.5	100.5	45.5	5
75 x 40 x 75	112.5	100.5	135.5	100.5	57.4	5
75 x 50 x 75	114.5	100.5	135.5	100.5	71.2	4
75 x 63 x 75	118.0	100.5	135.5	100.5	87.6	4
90 x 40 x 90	128.0	122.3	157.0	122.3	54.5	3
90 x 50 x 90	133.0	122.3	157.0	122.3	70.8	3
90 x 63 x 90	137.0	122.3	157.0	122.3	85.4	2
90 x 75 x 90	140.0	122.3	158.5	122.3	100.2	2
110 x 50 x 110	158.0	148.0	180.0	148.0	71.6	2
110 x 63 x 110	158.0	148.0	180.5	148.0	86.8	2
110 x 75 x 110	156.5	148.0	180.0	148.0	100.0	2
110 x 90 x 110	163.0	148.0	181.0	148.0	121.0	2

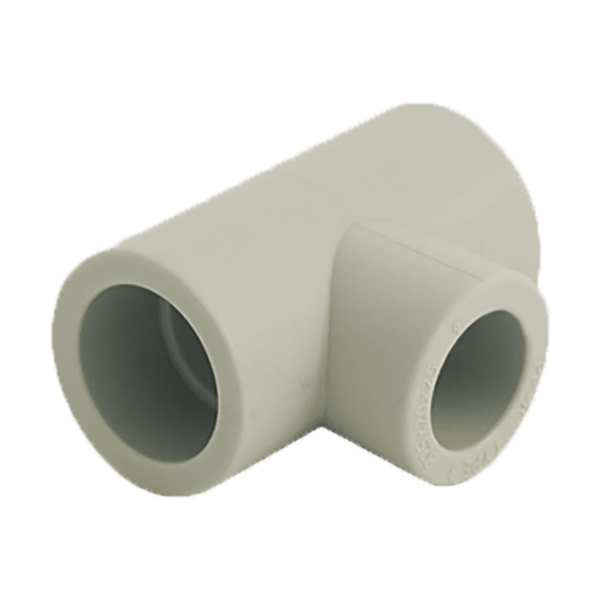

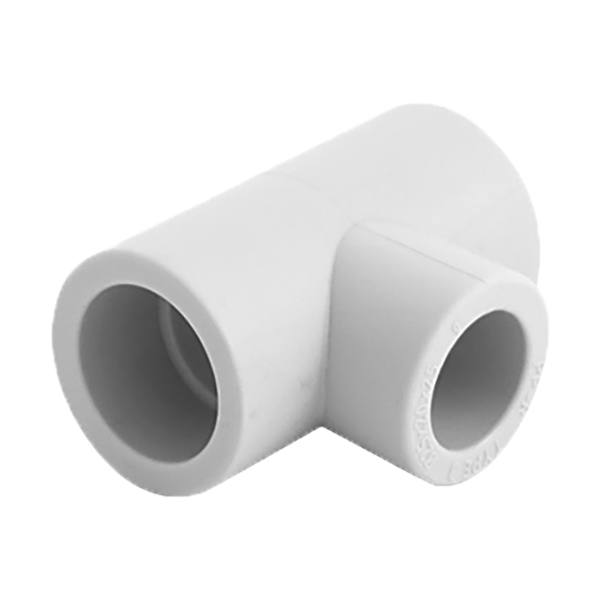

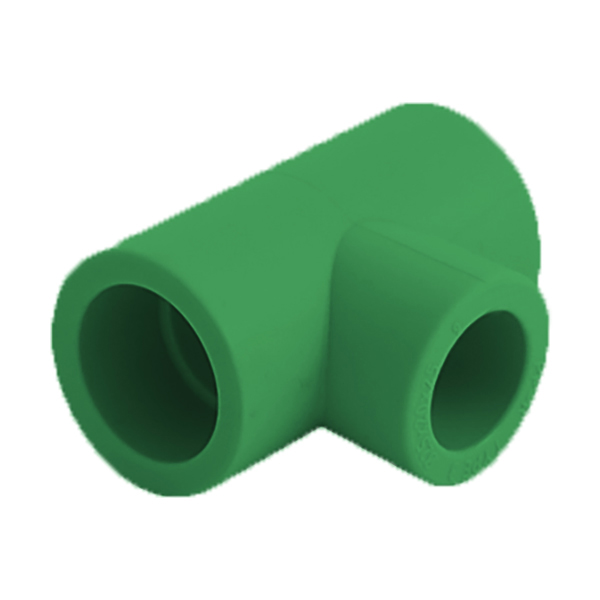

Reducer T Part
